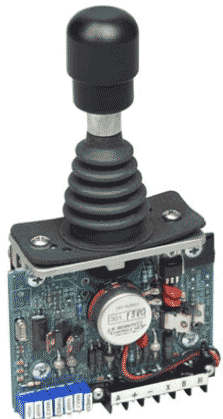

Industrial Joystick PRO 4 : 1 Axis (Forward -Center- Back) Potentiometer & Switches.
-
PRO 4 For Harsh Environments . Economical
- Proportional control for electro-hydraulic valves
- and AC/DC variable speed drives. Scissor lifts, Cranes, etc
- Step & stepless design
- Handle will spring return to center or friction hold
- Available with mechanical interlock (shown)
- lift collar under knob to move handle
- Potentiometers: 5K- 3 terminal or !0K- 4 terminal (center tap)
- and 4 or 6 switches (10 AMP 125, 250 VAC
- Handle travel : 2 X 36 degrees potentiometer
- Handle travel : 2 X 20 degrees potentiometer
-
Deadman Brake Handle Option (Model BH)
- Handle options available :
- Round ball, rocker switch, push buttons.
